Model

Brand

GIGABYTE

Model

GA-M61PM-S2

Supported CPU

CPU Socket Type

Socket AM2

CPU Type

Athlon 64 X2 / Athlon 64 FX / Athlon 64

FSB

1000MHz Hyper Transport (2000 MT/s)

Chipsets

North Bridge

NVIDIA GeForce 6100

South Bridge

NVIDIA nForce 430

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR2 800

Maximum Memory Supported

16GB

Dual Channel Supported

Yes

Expansion Slots

AGP Slots

None

PCI Express x16

1

PCI Express x1

1

PCI Slots

2

Storage Devices

PATA

1 x ATA100 up to 2 Devices

SATA 3Gb/s

4

SATA RAID

0/1/0+1/5

Onboard Video

Onboard Video

Yes

Onboard Video Chipset

NVIDIA GeForce 6100

Onboard Audio

Audio Chipset

Realtek ALC883

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Realtek 8211

Max LAN Speed

10/100/1000Mbps

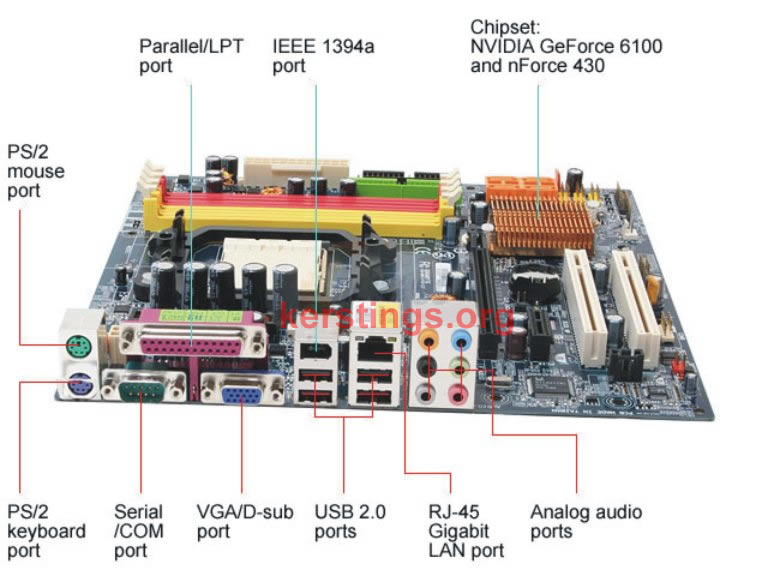

Rear Panel Ports

PS/2

2

COM

1

LPT

1

Video Ports

D-Sub

USB

4 x USB 2.0

IEEE 1394

1 x IEEE 1394a

Audio Ports

6 Ports

Onboard USB

Onboard USB

3 x USB 2.0 connectors for additional 6 USB 2.0 ports by cables

Onboard 1394

Onboard 1394

2 x 1394a connectors for additional 2 ports by cable

Physical Spec

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

Features

Power Pin

24 Pin

Features

Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn't have such limitation.
Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.

Packaging

Package Contents

GA-M61PM-S2
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
